Organized network infrastructure

Service 02

Structured Data Cabling

Cat6 and Cat6A structured cabling, network spaces, rack integration, pathway routing, labeling, and channel certification.

Request a quote View capabilities

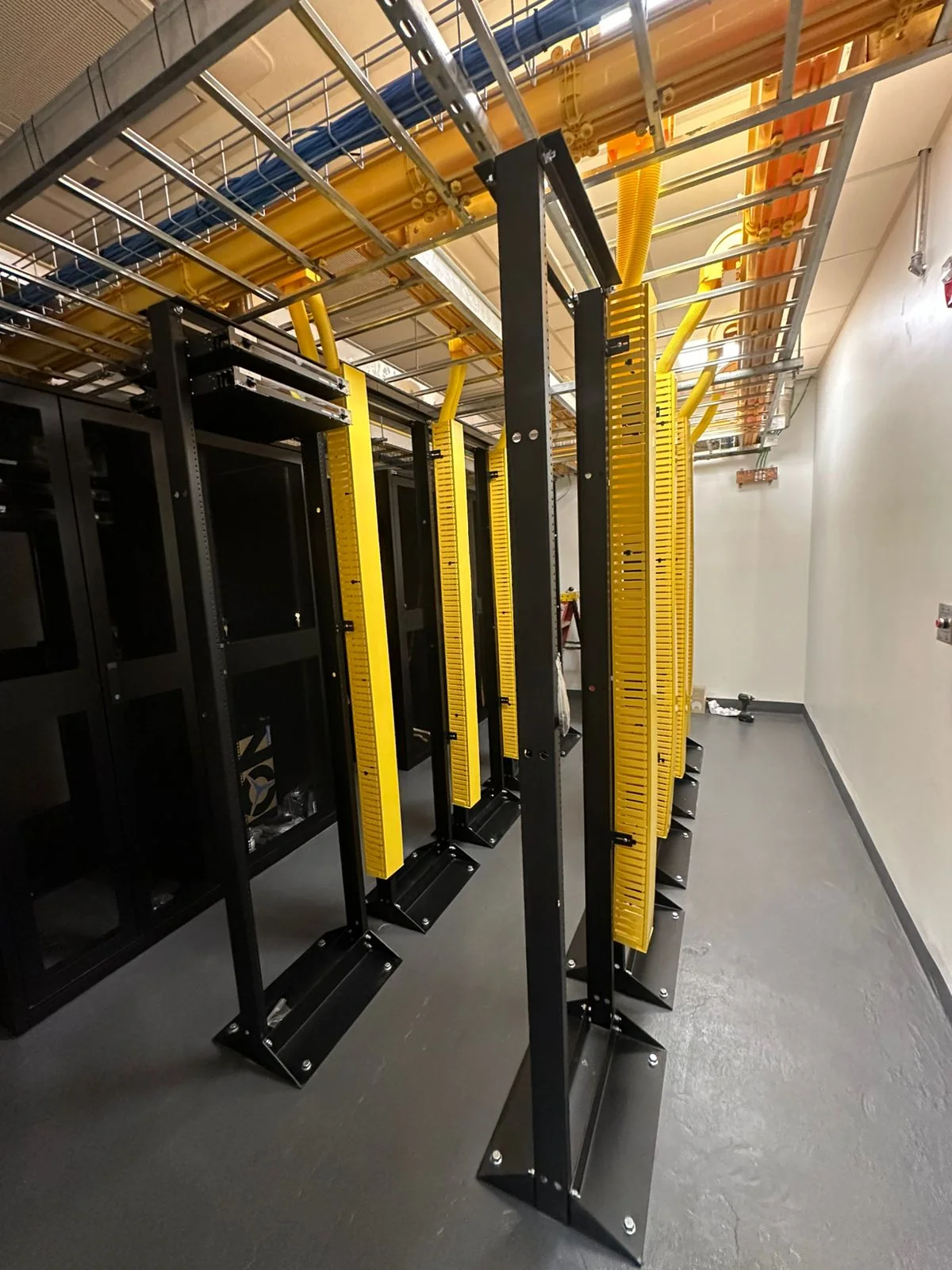

Network racks beneath overhead cable trays and yellow fiber-routing channels.

Guam & Pacific Region

Technical overview

Built around the complete infrastructure scope.

CTS Pacific builds organized copper-cabling infrastructure for commercial, government, industrial, and residential project environments.

Installations can include cable pathways, patch panels, network racks, MDF and IDF spaces, labeling, and channel certification testing as part of one coordinated delivery scope.

Core capabilities

Technical execution in the field.

Cat6 cabling

Cat6A cabling

Structured cabling

Patch-panel termination

Network-rack integration

Cable-tray routing

MDF and IDF buildout

Labeling and certification testing

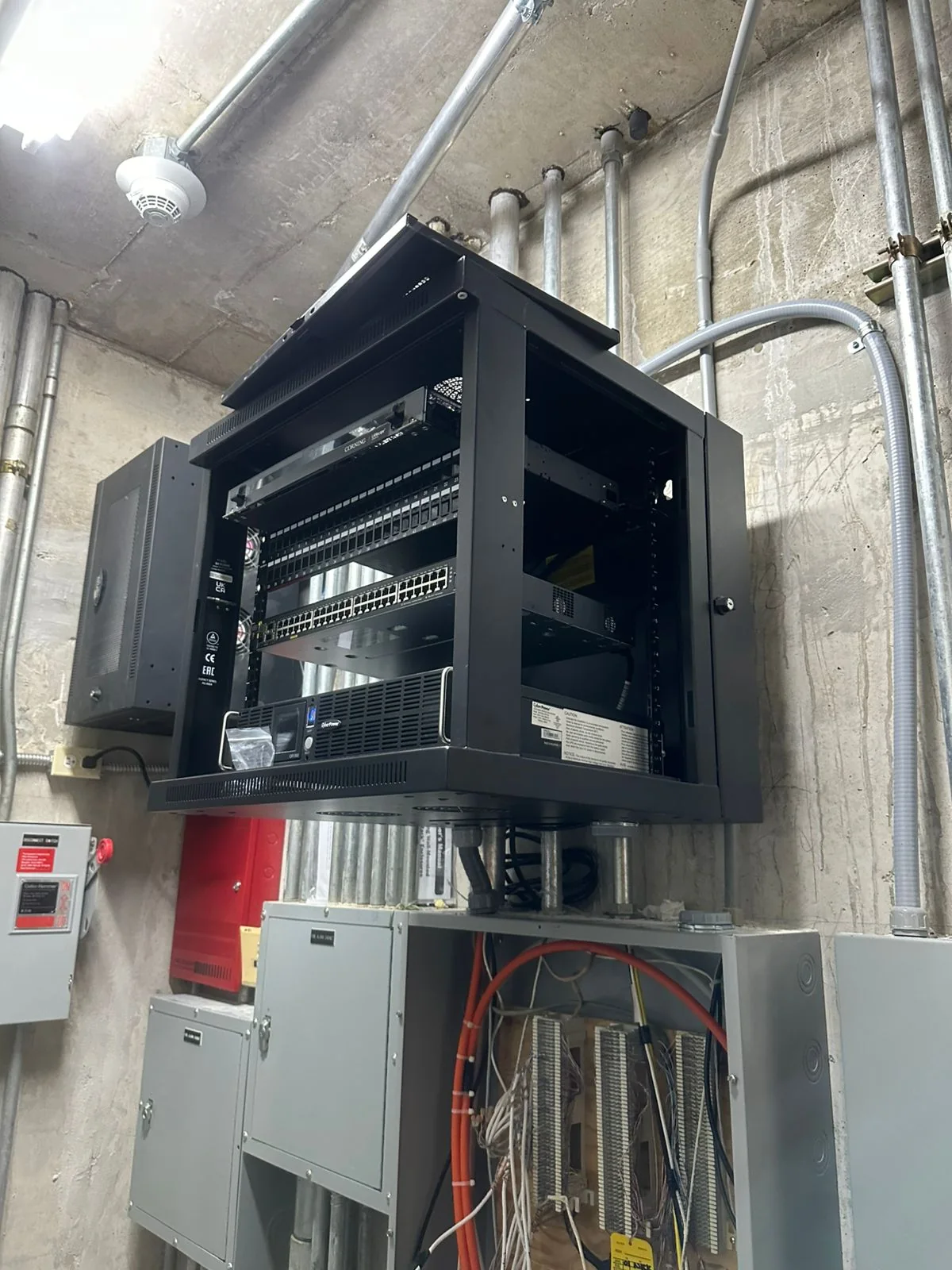

Open wall-mounted network rack with a switch, patch panels, and connected cabling. — Client-supplied imagery

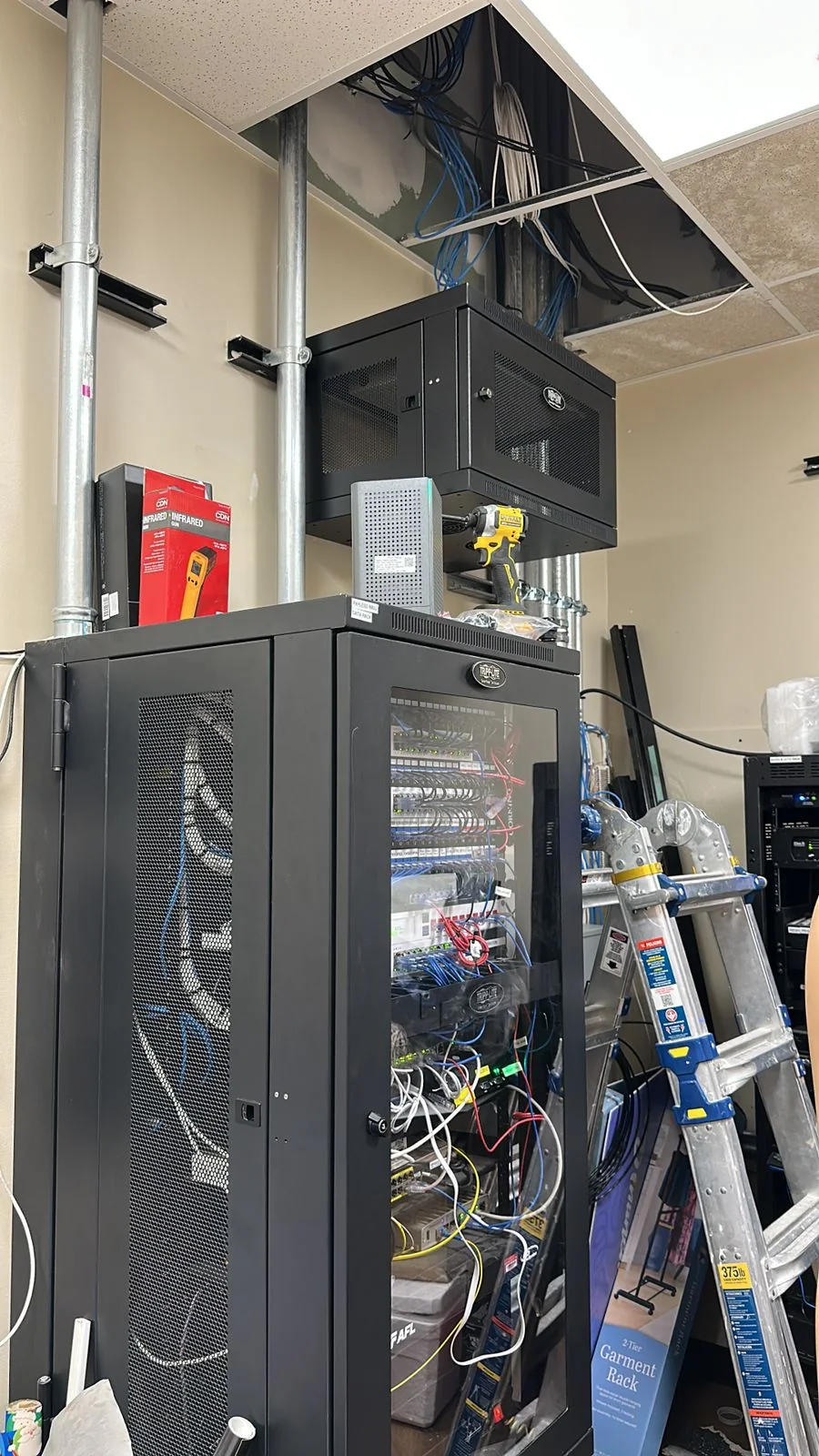

Floor-standing network rack and wall-mounted patch-panel cabinet in a communications room.

Applications

Configured for the project environment.

Scope and execution are coordinated around the facility, pathway, operating environment, and related telecommunications systems.

Commercial networksGovernment facilitiesIndustrial environmentsResidential projectsNew constructionNetwork upgrades and expansions

Field details

Connections, organized.

A closer look at physical network connections and the equipment they support.

Switching and patch connections

Fiber panels, switch uplinks, and connected network equipment.

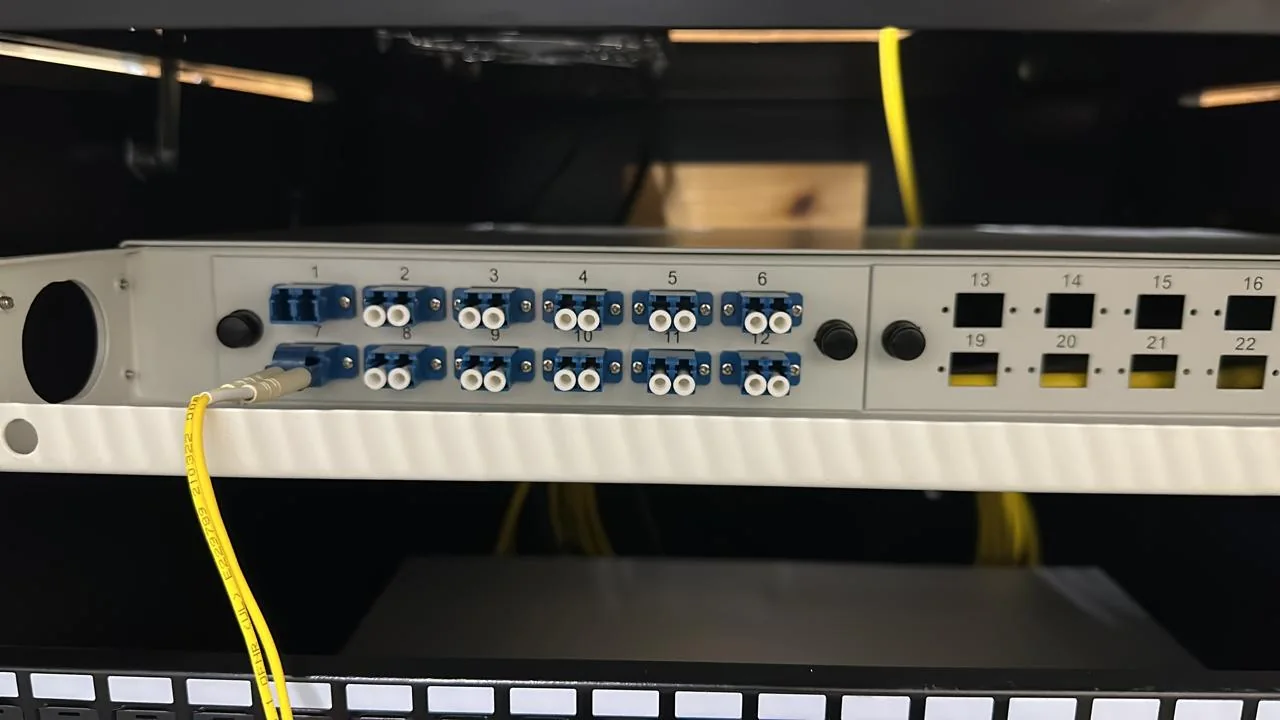

Rack-mounted fiber patch panel with blue adapters and a connected yellow fiber patch cable. — 01Rack-mounted fiber termination

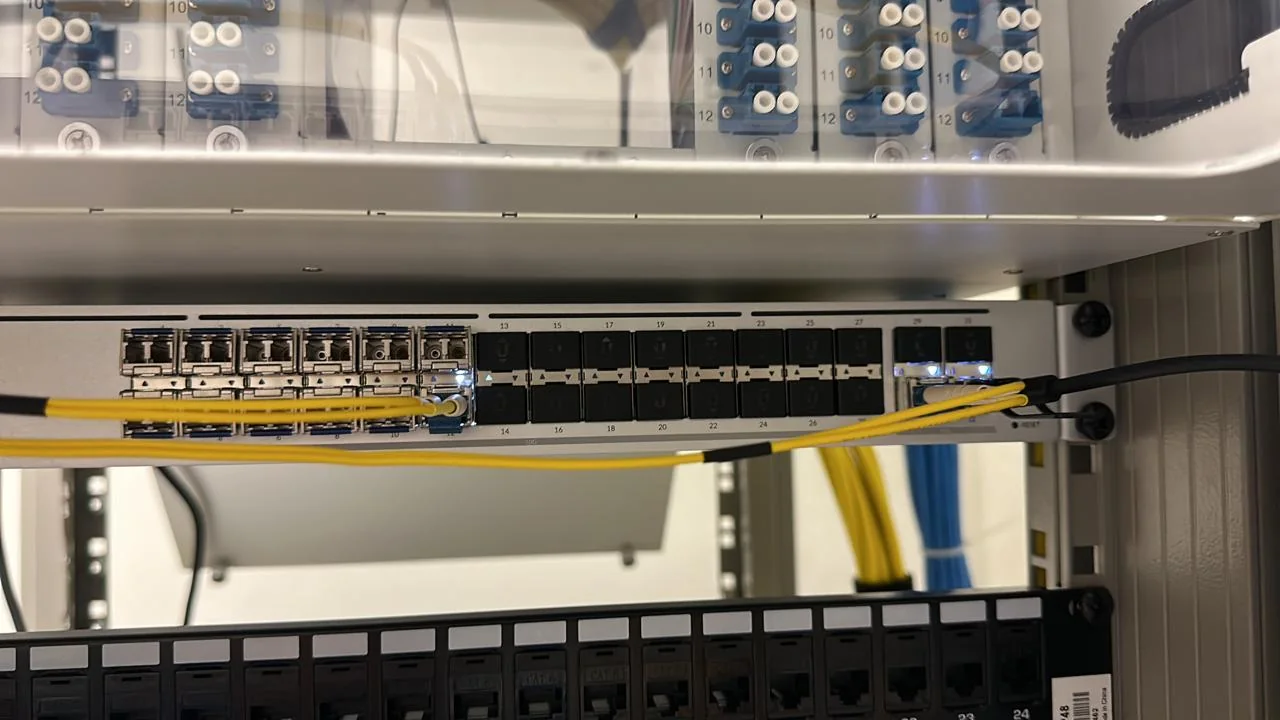

Rack-mounted optical switch with transceiver slots and yellow fiber patch cables below a fiber distribution panel. — 02Optical switching connections

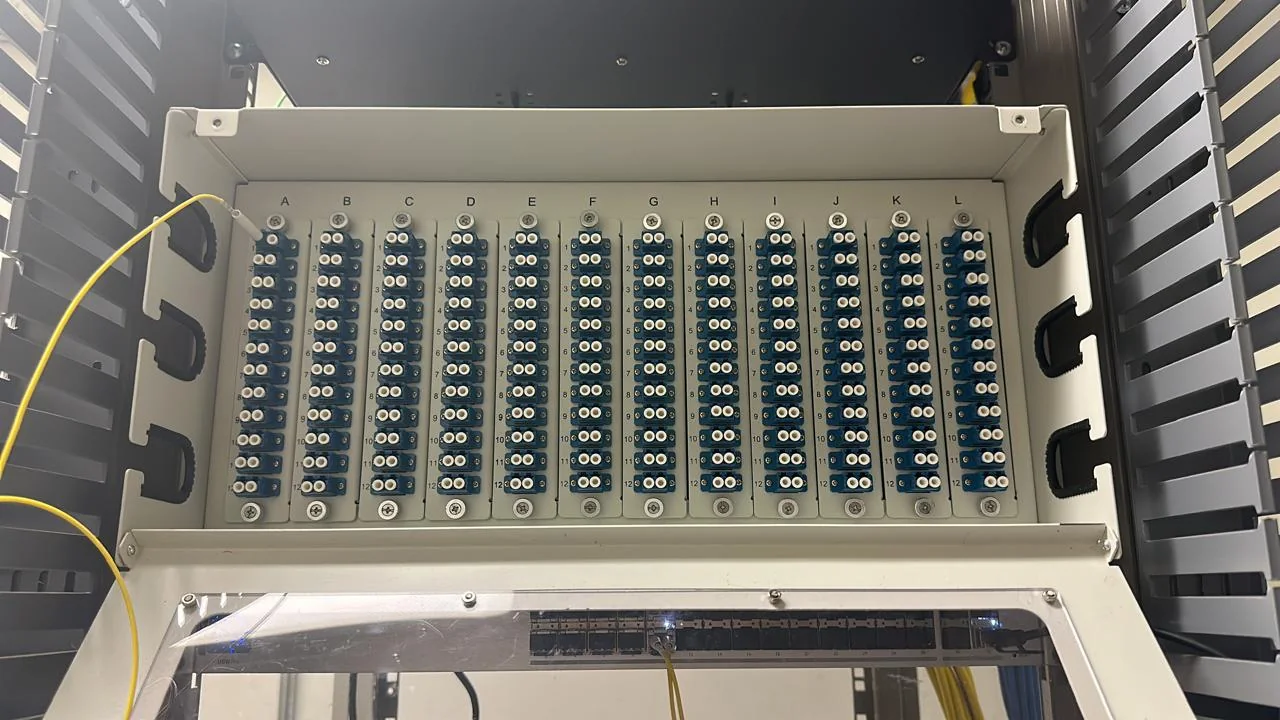

Fiber distribution panel with rows of blue adapter ports mounted inside a telecommunications rack. — 03Fiber distribution in the rack

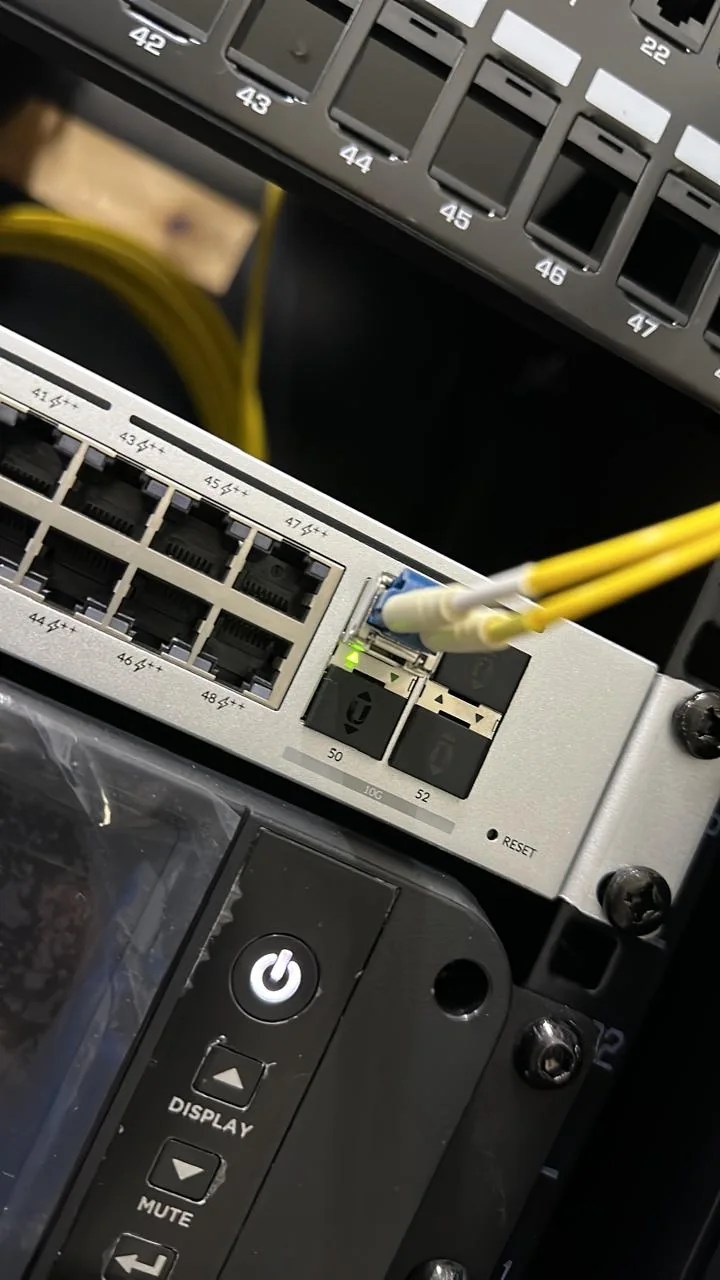

Network switch with Ethernet ports and a yellow fiber uplink cable connected beside rack equipment. — 04Switch and fiber uplink

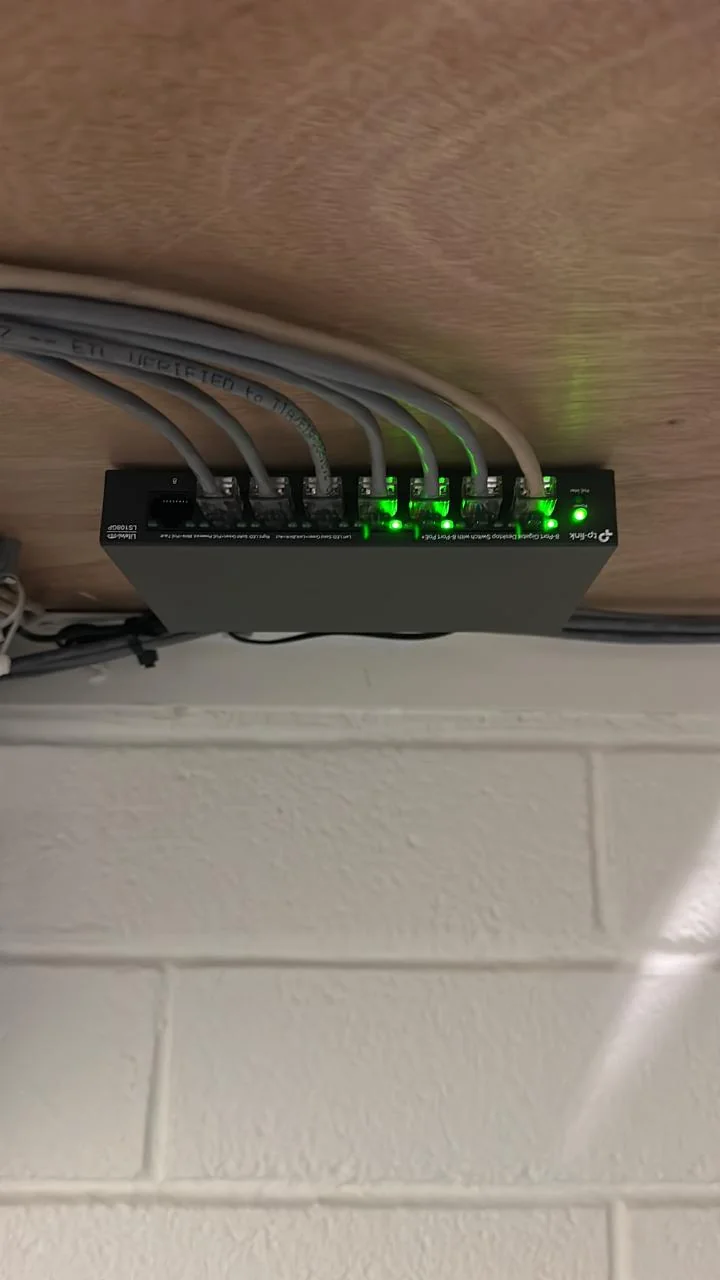

Compact network switch mounted below a wooden surface with connected cables and green indicator lights. — 05Compact network connections

Execution process

From coordination to commissioning.

Each project is scoped around its technical requirements. This framework shows the major execution stages without assuming details that have not yet been established.

01
Layout review
Coordinate network rooms, outlets, pathways, racks, and cable-routing requirements.
02
Pathway and cable routing
Install and organize cabling through trays, pathways, MDFs, and IDFs.
03
Termination and labeling
Terminate at patch panels and outlets, then apply clear infrastructure labeling.
04
Channel certification
Complete channel certification testing for the installed cabling system.

Discuss your project

Need data cabling capability?

Share the location, project environment, target timeline, and technical scope. CTS Pacific can help identify the appropriate next step.

Request a project quote
